MCT production packers are grouped by how they are set and what they are used for: mechanical set, hydraulic set, seal bore, ESP and swellable packers, plus completion accessories. Use the sections below to find a packer family, then open the product page for details or the datasheet.

Request a Quote



Which Packer Family?

  • Mechanical set packers: from the SH-AD1 tension packer, a retrievable, tension set packer designed to hold pressure from below, to the SH-S1X single string mechanical production packers, retrievable double grip compression or tension-set packers.
  • Hydraulic set packers: the SHP-2 can be run in single or multiple zone installations and is recommended for deviated wells where conditions are not suitable for mechanical or electric wire packers; the SFH is used in production, injection and zonal isolation.
  • Seal bore packers: Shield-Set and SBP permanent packers and Shield-Set sealbore retrievable packers, with the mill-out, seal bore and concentric accessories that connect to them.

Looking for service or squeeze packers? See Service Tools.

Contact MCT for product selection, technical support or pricing.

Mechanical Set Packers

SH-AD1 TENSION PACKER

SH-AD1 TENSION PACKER
Model SH-AD1 Tension Packer is a retrievable, tension set packer, designed to hold pressure from below.

SH-G1 RETRIEVABLE COMPRESSION PACKER

SH-G1 RETRIEVABLE COMPRESSION PACKER
The SH-G1 Retrievable Compression Packer is a compact, economical set-down packer that can be used by itself for production applications or, with a companion unloader and hold-down, it can be used for well stimulation, testing and other pressuring operations and then left in the well as a production packer.

SH-R3D LARGE BORE DOUBLE GRIP RETRIEVABLE PACKER

SH-R3D LARGE BORE DOUBLE GRIP RETRIEVABLE PACKER
Large Bore Model SH-R3D Double Grip Retrievable Casing Packers are used in production, stimulation and testing operations where maximum I.D. Is required.

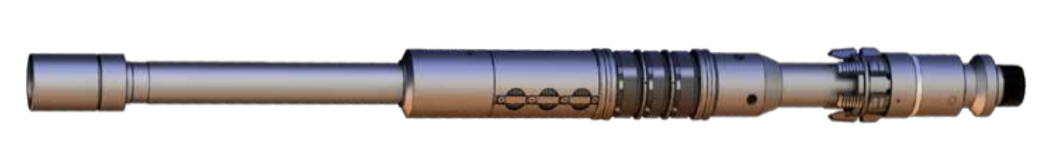

SH-R3D DOUBLE GRIP RETRIEVABLE PACKER

SH-R3D DOUBLE GRIP RETRIEVABLE PACKER
Model SH-R3D Double Grip Retrievable Casing Packers are used in production, stimulation and testing applications. Their hydraulic hold down is below the pressure equalization valve.

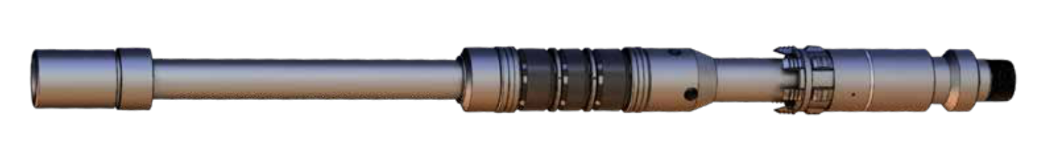

SH-R3S SINGLE GRIP RETRIEVABLE PACKER

SH-R3S SINGLE GRIP RETRIEVABLE PACKER
Model SH-R3 Single Grip Retrievable Casing Packers are used in production as a conventional long stroke Packer.

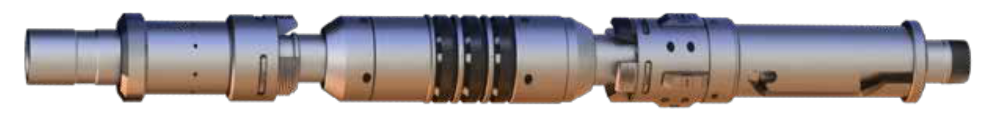

SH-S1X MECHANICAL SET RETRIEVABLE PRODUCTION PACKERS

SH-S1X MECHANICAL SET RETRIEVABLE PRODUCTION PACKERS
The Model SH-S1X single string mechanical Production Packer is a retrievable, double grip compression or tension-set packer that holds pressure from above or below. Once set the tubing string can be left in tension, compression, or in a neutral position.

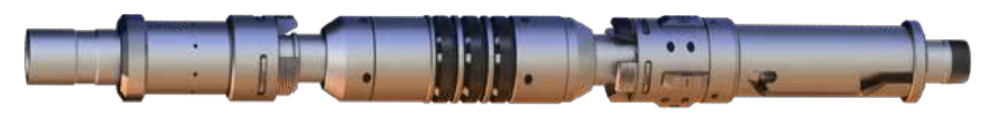

SH-S1X HP MECHANICAL SET RETRIEVABLE PRODUCTION PACKER

SH-S1X HP MECHANICAL SET RETRIEVABLE PRODUCTION PACKER
The Model SH-S1X HP single string Mechanical Production Packer is a retrievable, double grip compression or tension-set production packer that holds pressure from above or below. Once set, the tubing string can be left in tension, compression, or in a neutral position.

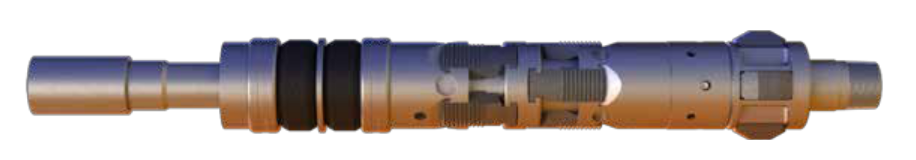

SH LOCK-SET DOUBLE-GRIP RETRIEVABLE PACKER

SH LOCK-SET DOUBLE-GRIP RETRIEVABLE PACKER
Model SH Lock-Set Retrievable Casing Packer is a Full Bore Double Grip Retrievable Packer with a built-in pressure equalizing unloader. It holds pressure from above or below.

Hydraulic Set Packers

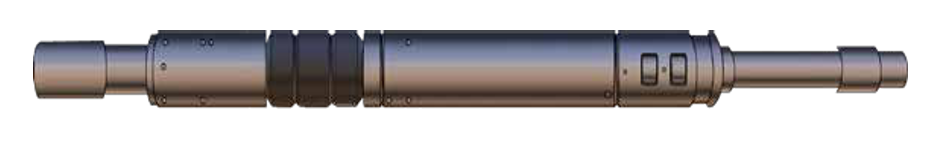

SHP-2 HYDRAULIC SET PACKER

SHP-2 HYDRAULIC SET PACKER
Model SHP-2 Hydraulic Set Packer can be run in single or multiple zone installations. It is recommended for deviated wells where conditions are not suitable for mechanical or electric wire packers.

SFH RETRIEVABLE HYDRAULIC PACKER

SFH RETRIEVABLE HYDRAULIC PACKER
Model SFH Retrievable Hydraulic Packer is used in production, injection and zonal isolation. It can be run in single or multiple zone installations.

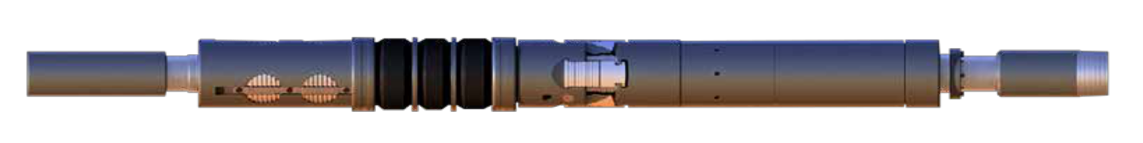

SFHL HYDRAULIC SET PACKER

SFHL HYDRAULIC SET PACKER
Model SFHL Retrievable Double-Grip Large Bore Hydraulic Single String Packer is a large bore version of the Model SFH Packer.

Seal Bore Packers & Related Accessories

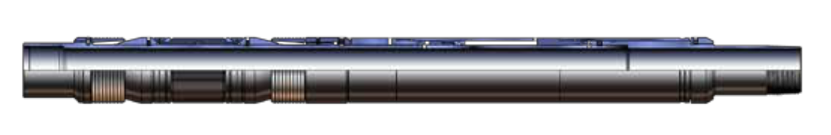

SHIELD-SET PERMANENT PACKER

SHIELD-SET PERMANENT PACKER
Model SHIELD-SET retainer production packers are hydraulically set Packers. Both models permit the maximum possible bore through the seal accessory, which is latched into the packer. An independent polished bore can be connected on the top of the packer to get a max ID. The hydraulic setting mechanism makes the Packers particularly suitable for use in highly deviated wells.

SBP-S PERMANENT PRODUCTION PACKERS

SBP-S PERMANENT PRODUCTION PACKERS
Model SBP-S Production Packers are used on installations requiring premium production equipment for high temperatures and pressures. These wireline set, millable packers are available for 4 1/2” through 11 3/4” casings.

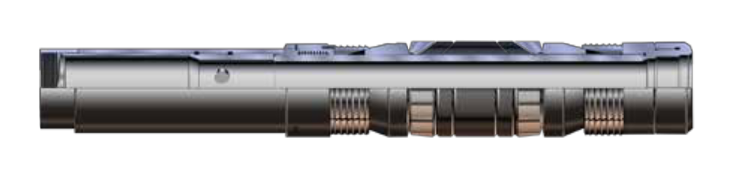

SBP-L PERMANENT PRODUCTION PACKERS

SBP-L PERMANENT PRODUCTION PACKERS
Model SBP-L Permanent Production Packers have a larger ID through the packer bore making them an excellent choice for parallel string installations and similar applications. These wirelines set millable packers are available for 4 1/2” through 9 5/8” casings.

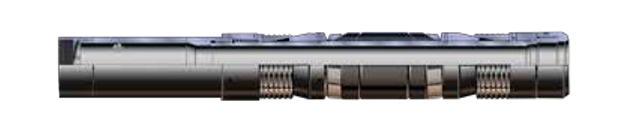

SHIELD-SET SEALBORE RETRIEVABLE PACKERS

SHIELD-SET SEALBORE RETRIEVABLE PACKERS
Model SHIELD-SET Retrievable Production Packers are used for production, injection, testing, fracturing, squeeze cementing, gravel packing and as temporary bridge plugs.

SHIELD MILL-OUT EXTENSION S-MOE

SHIELD MILL-OUT EXTENSION S-MOE
Mill-Out Extension is used in installations where floating seals are required due to tubing contractions. In addition, this packer accessory provides a larger ID between a packer bore and a seal bore extension allowing a packer to be milled out.

SHIELD MILL OUT BOTTOM S-MOB

SHIELD MILL OUT BOTTOM S-MOB
Mill-Out Bottom is used to connect a mill-out extension to a packer.

SHIELD KNOCK-OUT BOTTOM S-KOP

SHIELD KNOCK-OUT BOTTOM S-KOP
Knock-Out Bottom runs below the packer to recess the knock-out plug so as to convert a packer as a bridge plug holding pressure from above and below.

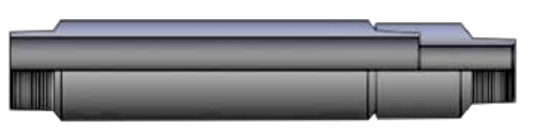

SHIELD SEAL BORE EXTENSION S-SBE

SHIELD SEAL BORE EXTENSION S-SBE
Seal Bore Extension is used in installation where floating seals are required due to tubing contractions. This packer accessory allows for a continuous seal bore and is available in length up to twenty feet.

SHIELD SEAL BORE TO MILL-OUT COUPLING S-SBMC

SHIELD SEAL BORE TO MILL-OUT COUPLING S-SBMC
Seal Bore to Mill-Out Coupling is used to connect mill-out extensions to seal bore extensions

SHIELD CONCENTRIC BOTTOM S-SBCB

SHIELD CONCENTRIC BOTTOM S-SBCB
Concentric Bottom is used to connect seal bore extensions to a packer.

SHIELD CONCENTRIC COUPLING S-SBCC

SHIELD CONCENTRIC COUPLING S-SBCC
Concentric Coupling is used to connect seal bore extensions to increase length.

SHIELD WIRELINE RE-ENTRY BOTTOM S-SBRB

SHIELD WIRELINE RE-ENTRY BOTTOM S-SBRB
Wireline Re-Entry Bottom is used as the packer bottom when an extension below a packer is not required.

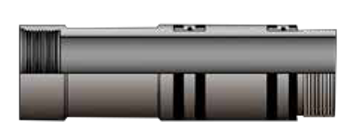

SHIELD SNAP LATCH ASSEMBLY S-SLA

SHIELD SNAP LATCH ASSEMBLY S-SLA
Snap Latch Seal Assembly latches into the packer upon set down (like our Anchor Latch Seal Assembly).

SHIELD TUBING SEAL NIPPLE S-TSN

SHIELD TUBING SEAL NIPPLE S-TSN
Tubing Seal Nipple is used as the lower seal assembly or assemblies in multiple packer installations. With sufficient seal units, mis-measurement or tubing movement can be accommodated.

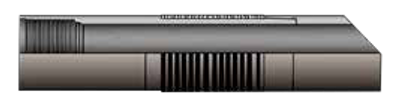

SHIELD SEAL UNITS S-SU

SHIELD SEAL UNITS S-SU
Seal units are used to add additional seal stacks to Locator Tubing Seal. Assemblies and Tubing Seal Nipples. Number could be chosen to accommodate expected tubing movement

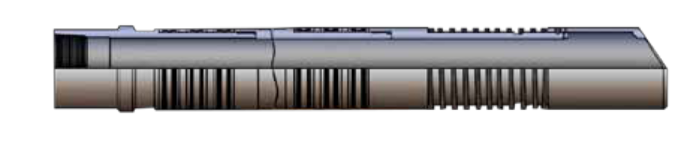

SHIELD LOCATOR TUBING SEAL ASSEMBLY S-LTSA

SHIELD LOCATOR TUBING SEAL ASSEMBLY S-LTSA
Locator Tubing Seal Assembly is designed for limiting downward Movement of the seals in the packer bore.

ESP Packers

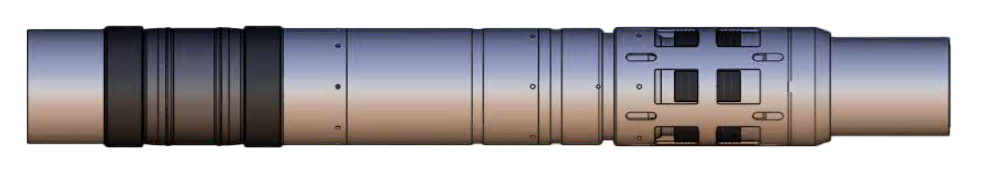

SHIELD-ESP DUAL STRING HYDRAULIC PACKER

SHIELD-ESP DUAL STRING HYDRAULIC PACKER
SHIELD-ESP is available in configurations engineered for ESP completion requirements, including legacy dual-mandrel arrangements and modernized single-mandrel multi-port designs, with umbilical ports for electric and control lines used to facilitate the installation of an electric submersible pump.

SHIELD-S2 DUAL STRING PRODUCTION PACKER

Shield-S2 Dual String Production Packer
SHIELD-S2 is a dual-string, hydraulic-set, double-grip retrievable production packer. It is usually run above a single string hydraulic or wireline set single string packer in a dual completion.

Swellable Packers

SWELL PACKERS

SWELL PACKERS
Shield Swell Packer Advantage Series Swellable Packer is constructed of a Swellable elastomeric element which can be bonded to pipe or provided in a slip-on configuration for ease of installation on site.

Completion Accessories

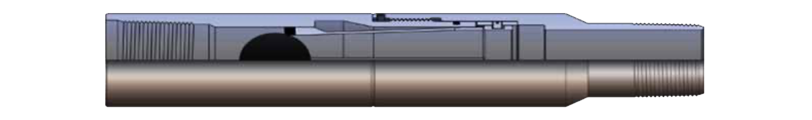

HTS-HYDRO TRIP SUB

Hydro Trip Sub
It is used to temporary plug the tubing string with the use of a setting ball. The sub is installed below a hydraulically actuated tool to provide a method of applying tubing pressure required to activate the tool.

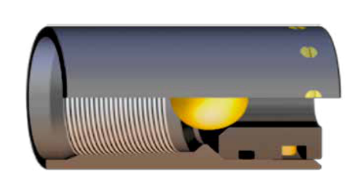

POP-PUMP OUT PLUG

POP-PUMP OUT PLUG
It is available with a variety of threads allowing installation to the bottom of the tubing string to isolate the tubing from the annulus.

SHIELD SOMS – SELF – ORIENTED MULE SHOE

SHIELD SOMS – SELF – ORIENTED MULE SHOE
The SHIELD Self Oriented Mule Shoe facilitates stab in of seals into seal bores, even in deviated wells.

SHIELD-EXJ EXPANSION JOINT

SHIELD-EXJ EXPANSION JOINT
SHIELD-EXJ expansion joint is a key accessory to downhole string, which is used for compensation mechanism by the length change of string, caused by internal and external pressure or temperature changes mechanism.

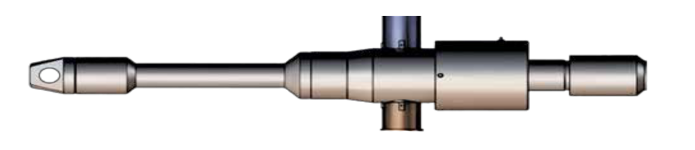

SHIELD TS -TUBING SWIVEL

SHIELD TS -TUBING SWIVEL
Tubing Swivel allows to rotate the work string without breaking the surface flow-line connections. This feature makes handling supply lines easier and prevents the binding frequently associated with the attachment of stiff cementing hoses.

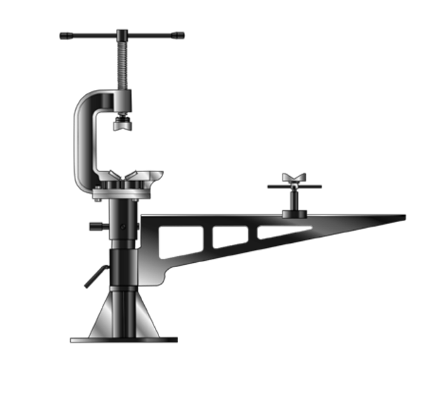

SC TYPE SUR-GRIP VISE

SC TYPE SUR-GRIP VISE
SC TYPE SUR-GRIP VISE is a heavy duty screw-type vise designed for holding pipe, valves, fittings, or just about anything within the capacity of its positive grip jaws.

GLASS DISK BARRIER SUBS

MCT glass disk barrier sub cutaway
Temporary glass disk barrier for tubing testing, packer setting, TCP, DST and casing flotation. No moving parts, no ports, no residue after shearing. 2-3/8″ to 7″, up to 15,000 psi.
