SRTS Retrievable Service Packer

Home > Products > Service Tools > SRTS SERVICE PACKER

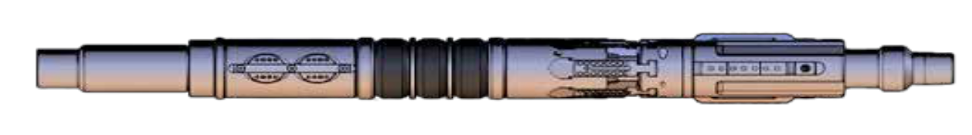

SRTS retrievable service packer, side view

The SRTS is a full-opening, compression-set retrievable service packer for a wide variety of well treating and producing installations. It is used where high differential pressure from below the packer is anticipated, and hydraulically actuated hold-down pistons anchor it against upward movement.

The full-opening bore permits large volumes of fluid to be pumped with minimal pressure drop and allows a through-tubing perforating gun to pass, so perforating, testing, treating, squeezing and reperforating can be carried out with one trip in the hole. The SRTS is part of the MCT service tools range used in well intervention work.

How the SRTS service packer works

  • Setting: run to depth, pick up a few feet, rotate 2/3 turn to the right and set down. The automatic J-unit sets the packer.
  • Hold-down: hydraulically actuated hold-down pistons anchor the packer against upward movement when differential pressure acts from below.
  • Bypass and equalizing: a surface-controlled combination bypass and equalizing valve.
  • Release: a straight pickup of the tubing releases the packer and automatically engages it in the running position for further operations up or down the hole.

Applications

With one trip in the hole, the SRTS supports:

  • Squeeze operations
  • Testing
  • Treating
  • Perforating and reperforating with a through-tubing perforating gun

The SRTS is generally run with a circulating valve assembly. Including a safety joint in the string is recommended but optional. Contact MCT to confirm the running assembly for your well.

SRTS retrievable service packer – special features

  • Sets securely in any hardness casing, including premium grades
  • Three-piece packing element system with metal backups accommodates low- and high-pressure applications for the broadest range of service
  • Surface-controlled combination bypass and equalizing valve
  • Straight pickup of the tubing releases the packer and automatically engages it in the running position for further operations up or down the hole
  • Automatic J-unit: the packer is set by running to depth, picking up a few feet, rotating 2/3 turn to the right and setting down

Frequently asked questions

What operations can the SRTS service packer perform in one trip?

Perforating, testing, treating, squeezing and reperforating. The full-opening bore allows a through-tubing perforating gun to pass and large fluid volumes to be pumped with minimal pressure drop.

How is the SRTS set and released?

Run to depth, pick up a few feet, rotate 2/3 turn to the right and set down. A straight pickup of the tubing releases the packer and returns it to the running position.

Why does the SRTS use hold-down pistons?

The SRTS is used where high differential pressure from below the packer is anticipated. Hydraulically actuated hold-down pistons anchor it against upward movement.

What is run with the SRTS?

A circulating valve assembly is generally necessary. A safety joint in the string is recommended but optional.

Which sizes and ratings are available?

Available casing sizes are listed in the SRTS datasheet below. Contact MCT for pressure and temperature ratings and for application-specific selection.

Product Specification Datasheet

Download SRTS datasheet (PDF)

Need Technical Support or a Quotation?

For SRTS selection, technical support or pricing, send MCT the casing size and weight and the planned operation (squeeze, test or treat).
