Hydraulic Hanger & Liner-Top Packers

SHIELD-WBP TOP SET

The SHIELD-FRAC Liner Top Packer is a hydraulic set, single trip permanent packer that incorporates a reliable sealing system.

Openhole Isolation Packers

SHIELD-WBP TOP SET

Openhole isolation options include hydraulic, mechanical and swellable packer systems for horizontal or vertical wells and selective openhole stimulation.

Frac & Stimulation Sleeves

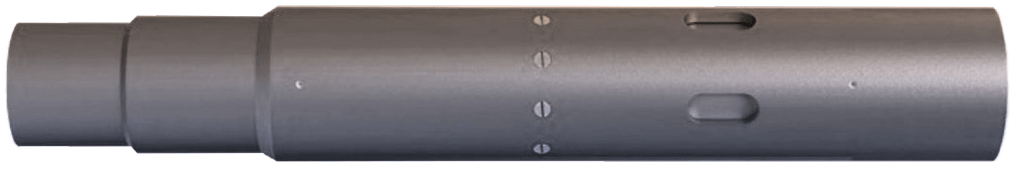

Frac Sleeve

SHIELD-WBP TOP SET

The SHIELD-FRAC ball activated frac sleeve is designed for use in multi-stage fracturing operations within a horizontal wellbore. Generally placed at equal distance and isolated between stages

Toe & Initiation Access

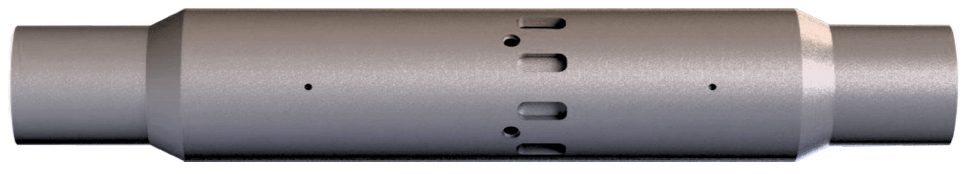

Fracstart Valve

SHIELD-WBP TOP SET

The FracStart Valve serves as the initiation point for communica- tion to the reservoir at the lower most point of the well when run in cemented or open hole casing strings

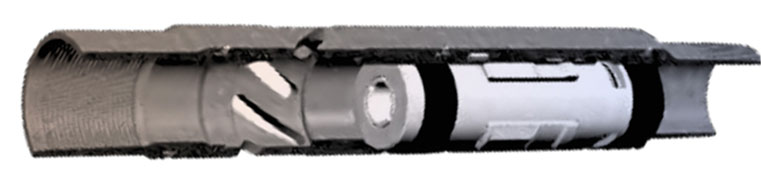

Multi-Stage Hydraulic Fracturing

SHIELD-WBP TOP SET

The MSF design is innovate and game changer. It’s designed for use in multi-stage fracturing operations within a horizontal wellbore. Generally placed at equal distance and isolated between stages

Stage Activation & Isolation

SHIELD-WBP TOP SET

Innovative MSF Activation and isolation device. significantly improve multi-stage frac completion design, installation and operation. reduce overall cost of completion, simplify intervention and ease stimulation operation compared with other existing systems.

Composite & Dissolvable Isolation

SHIELD-WBP TOP SET

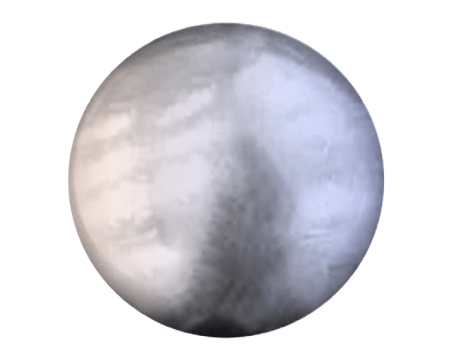

Composite frac plugs and dissolvable plugs, balls and cementing components provide temporary stage isolation for multi-stage fracturing and related completion operations.

Additional Shield-Frac Components

Explore the component pages for operating principles, features and product datasheets.
