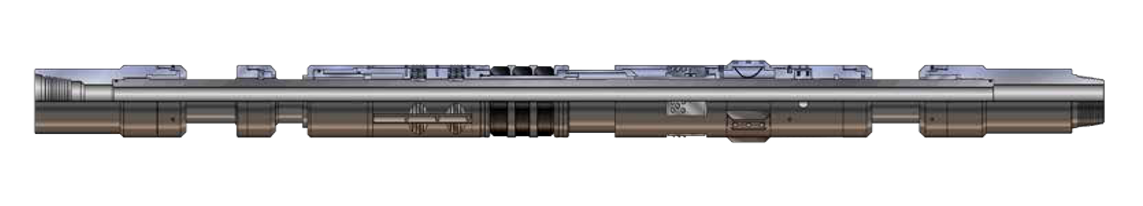

SH-SST Retrievable Packer

The SH-SST Storm Packer is a heavy-duty, three-quarter-turn, compression-set, retrievable service packer capable of holding differential pressure from above or below. The packer has a heavy-wall mandrel with tool joint connections that allow it to be set shallow, with the drill-string suspended below. When run in conjunction with a back check valve system, the SH-SST packer secures the well during weather-related emergencies or wellhead repair. The packer can also be used for conventional service work such as acidizing, fracturing, squeeze cementing, and casing tests.

SH-SST Retrievable Packer – Special Features

Special Features/Benef its

• Sets securely in any hardness casing, including premium grades
• Heavy-wall mandrel with tool joint connections
• Hydraulic hold-down pistons for pressure from below
• Large bypass area for equalization and circulation
• Caged slips with carbide buttons
• Keyed upper and lower connections for high-torque rating
• Three-quarter turn to set; pick up to release
• Built-in bypass allows equalization and circulation
• Right- or left-hand set available
• Carbide buttons are standard on slips and hold-down buttons for long life and durability
• High tailpipe rating for long drill-strings
• Makes directly to drill-pipe without crossovers
• Easy and economical to redress

Product Specification Datasheet
