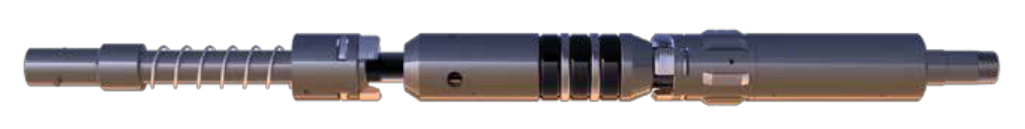

RBP-S1X Retrievable Bridge Plug
Home > Products > Service Tools > RBP-S1X
The RBP-S1X Retrievable Bridge Plug (RBP) is a high-pressure, packer-type retrievable bridge plug used for multiple selective zones treating and testing operations like acidizing, fracturing, cementing, casing pressure test, well head testing. The design of Bridge plug is based on the field proven SH-S1X packer. The Bridge Plug has a large internal by-pass to prevent swabbing when running and retrieving. The by-pass closes during the setting of the plug and opens prior to releasing the upper slips to equalize pressure when unsetting. The Model RBP-S1X also features an upper-slip releasing system that reduces the force required to release the packer. A non-directional slip is released first, making it easier to release the other slips
RBP-S1X Retrievable Bridge Plug – Special Features
- High pressure rating – Holds high pressure differentials from above or below
- 1/4 turn set & release – Only one-quarter right rotation is required to set and release
- Large Bypass – Bypass valve is below upper slips, so the debris is washed from slips when the valve is opened
- Pressure equalizing before setting – The by-pass closes during the setting of the plug and opens prior to releasing the upper slips to equalize pressure when unsetting
- Tubing string can be held in tension, compression, or neutral set while the packer remains engaged
- Safety release feature – Optional safety-release features available upon request
RBP-S1X Applications
- Treating and testing of multiple selective zones
- Acidizing
- Fracturing
- Cementing
- Wellhead testing
For retrievable bridge plug applications that call for a plug run and set by a wireline pressure setting tool, see the SWBR Wireline Set Retrievable Bridge Plug.
Product Specification Datasheet
