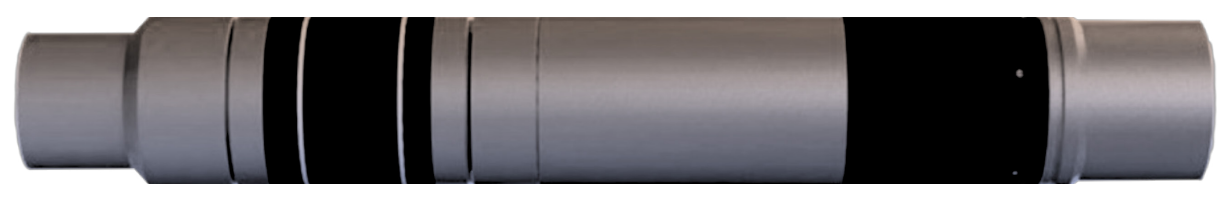

Side view of the open hole packer

The Shield-Frac Open Hole Packer is a hydraulically activated packer for horizontal or vertical open-hole completions. Within a Shield-Frac multistage completion string, it provides annular isolation between stimulation stages.

The packer uses a fully retained element held by a locking mechanism after setting. Its compact, modular configuration supports handling and makeup during deployment.

KEY FEATURES

  • Hydraulic activation
  • Fully retained element with locking mechanism
  • Mesh backup rings for extrusion prevention
  • Field-proven element assembly
  • Compact, modular configuration
  • P110 material construction

Technical Specifications

Shield-Frac Open Hole Packer ratings by casing size
Casing Casing weight (lb/ft) Open-hole range (in) Service casing OD (in) ID (in) Max trigger pressure (psi) Working pressure (psi) Max temperature (°F)
4½” 13.5–15.1 6.000–6.250 7″, 20–35 lb/ft 5.750 3.920 2,260 10,000 275
5½” 20–23 8.500–8.750 9⅝”, 24.3–53.5 lb/ft 8.000 4.750 2,760 7,000 300

Ratings apply to the standard configuration: API P110 body, NBR elastomers and LTC box × pin connections. Working pressure and temperature ratings differ by size as shown. Other sizes, elastomers and premium connections are available on request.

Shield-Frac tools are customizable to the application.

Product Specification Datasheet

Download open hole packer datasheet (PDF)
