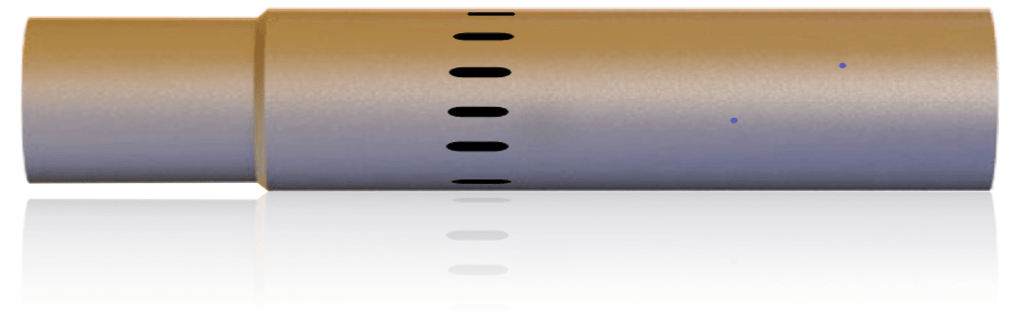

Shield-Frac Circulation Setting Valve
Home > Products > Unconventional Completion > Shield-Frac Circulation-Setting Valve
The Shield-Frac Circulation-Setting Valve is a normally open completion-string valve positioned above the float equipment and below the Initiator Valve. While running in hole, its open ports allow circulation through the casing string.
At setting depth, a setting ball is pumped from surface to shift the valve closed. Closing the internal circulation ports converts the valve into a blanking point so hydraulic pressure can activate compatible tools above it. After the tools are set, casing pressure can be released while the tool string remains closed to the reservoir until stimulation operations begin.
KEY FEATURES
- Normally open during deployment
- Ball-activated closing
- Remains closed after shifting
- Circulation ports designed to reduce debris accumulation
- Acts as a blanking point after closure
- P110 material construction
