Shield-Frac Initiator Valve

Home > Products > Unconventional Completion > Shield-Frac Initiator Valve

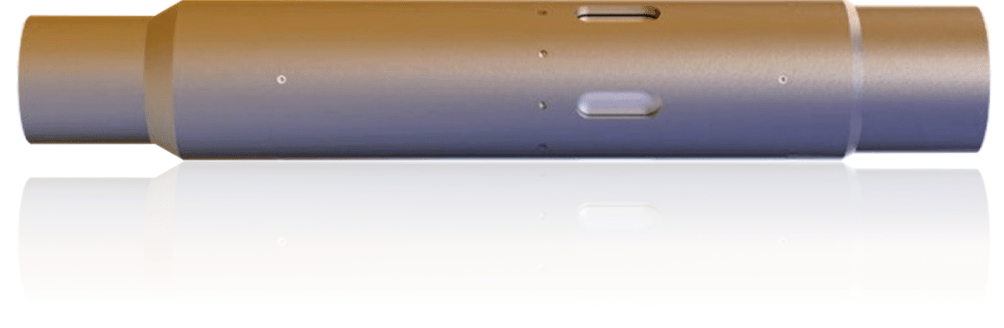

Side view of the Shield-Frac initiator valve

The Shield-Frac Initiator Valve is a hydraulically activated differential sleeve that provides the first point of entry and communication with the formation in a multistage completion string.

The valve is normally positioned above the float equipment. When opened by casing or annulus pressure, it can provide access to stimulate the lowermost zone or an exit path for pumping the first frac ball. The sleeve locks in the open position after activation.

KEY FEATURES

  • Casing/annulus-pressure activation
  • Full-bore ID when open
  • Sleeve locks open after shifting
  • Selectable opening pressure by configuration
  • P110 material construction

Product Specification Datasheet

Download Shield-Frac initiator valve datasheet (PDF)
